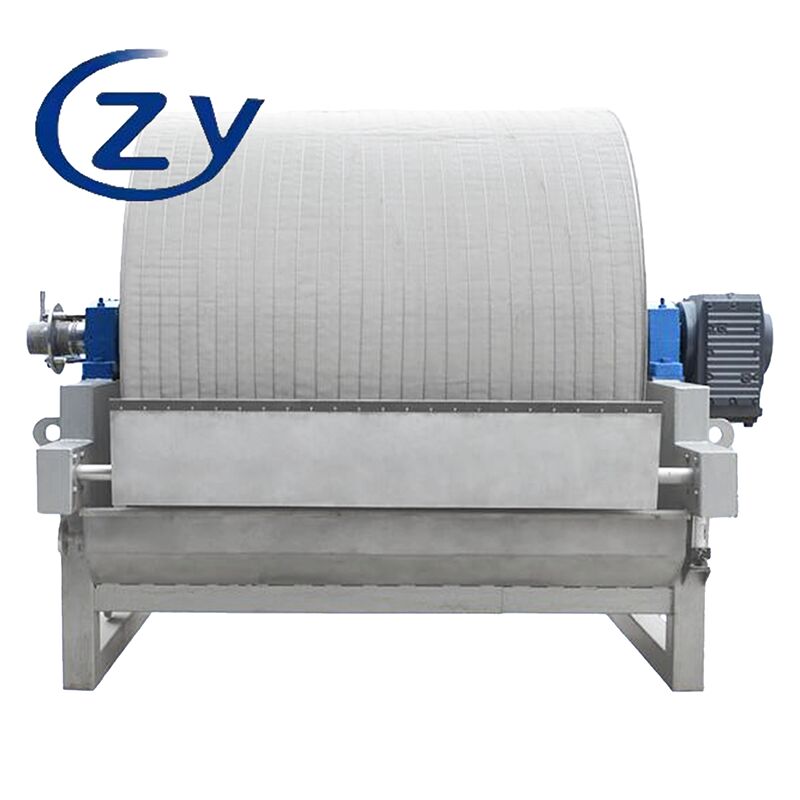

Large-Volume Rotary Vacuum Drum Filter - High-Purity Potato Starch Slurry Dewatering Machine for Large-Scale Food Processing
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | ZY |
| Certificación: | ISO |
| Número de modelo: | VM10 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Detalles de empaquetado: | Embalaje simple |
| Tiempo de entrega: | 20-30DÍAS |
| Condiciones de pago: | LC, T/T |
| Capacidad de la fuente: | 20set por mes |
|
Información detallada |
|||
| Material: | SS304 | Fuerza: | 4kW |
|---|---|---|---|
| Capacidad: | 2-8 t/h de almidón seco | Garantía: | 1 año |
| color: | Blanco plateado | Voltaje: | 308V50Hz |
| Utilidad: | deshidratación de almidón | Nombre: | maquinaria de almidón de camote |
| Industrias aplicables: | Fábrica de alimentos y bebidas | Materia prima: | yuca, patata, batata |
| Material de la máquina: | Acero inoxidable | Embalaje: | embalaje estándar |
| Brand name: | ZY | ||
| Resaltar: | large-volume rotary vacuum drum filter,potato starch slurry dewatering machine,high-purity food processing machine |
||
Descripción de producto
Potato-Based Starch Dehydration Rotary Drum Vacuum Filter with Integrated Drive Motor for Potato Starch Manufacturing Plants
Description of sweet potato starch making machinery :
A vacuum drum filter press consists of a rotating drum operating within a sump containing the slurry pending filtration. As the drum rotates through the slurry, vacuum suction draws the liquid and suspended solids onto the drum’s pre-coated filter medium. The liquid fraction is pulled through the filter media by vacuum force, collected internally in the drum, and then expelled. The solid cake retained on the drum’s outer surface is transported to a scraping assembly, where it is scraped off together with a thin layer of the filter medium—exposing a fresh filtering surface for the subsequent filtration cycle as the drum continues to rotate.
By continuously developing the filtration process and technique as one of the few suppliers, ZY obtained a leading position in the market
Working principle:
This starch dewatering machine utilizes the suction force of a vacuum pump to create negative pressure inside the drum, making starch adhere to the drum’s filter cloth. As the drum rotates continuously at low speed, a starch layer of a certain thickness forms on the filter cloth. Water is sucked away by the vacuum pump, and the starch is automatically scraped off by a scraper—achieving efficient starch dehydration.
Type of starch dewatering machine :
| Type | VF10 | VF15 | VF20 |
| Filter area | 10m2 | 15m2 | 20m2 |
| Power | 5.5kw | 11kw | 18.5kw |
| capacity | 2ton/h | 4t/h | 5t/h |
FAQ:
1. Are you the manufacture or trading company?
A: We are the manufacturer with professional produce experience on starch machine and design more than 13 years. We own both of Domestic and international sales department.
2. Where is your factory located?
A: Our factory is located in Zhengzhou city, Henan province, welcome to visit.
3. What is your guarantee of machine ?
A: usually our guarantee is 1 years.
4. Can you arrange your technicians to install the machine for us?
A: Yes,We will assign our engineers to go abroad for installing machines for our users.
5. The minimum handling capacity is ?
A: for cassava flour machine : the minimum capacity is per hour 1ton/h flour .
B: for cassava starch line : the minimum capacity is per hour 2ton starch .
Workshop of starch factory :
