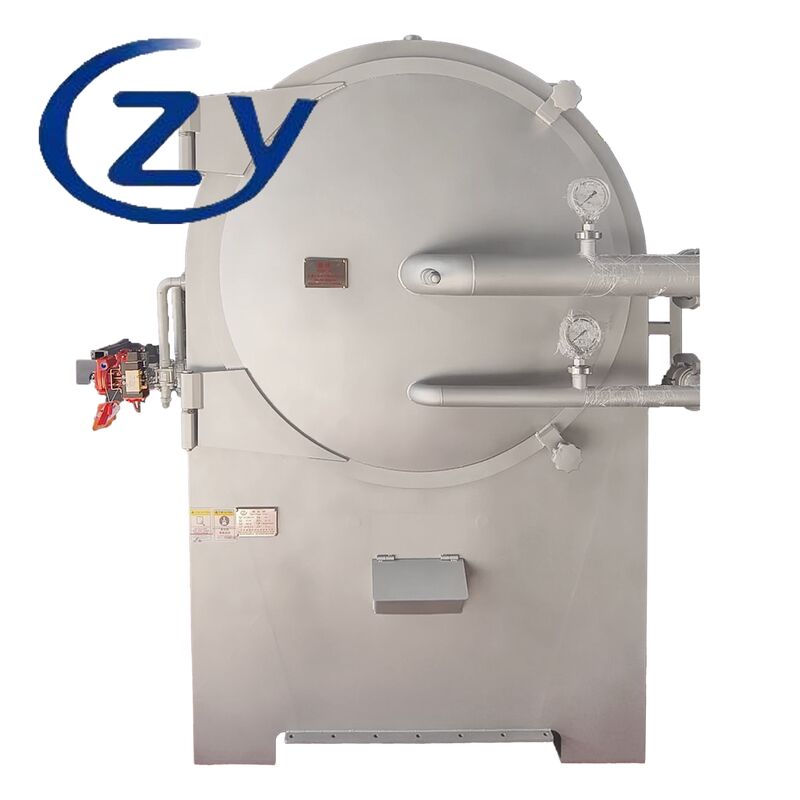

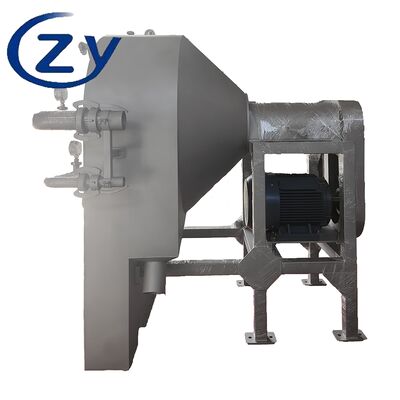

Stainless Steel Centrifuge Sieve Efficient Impurity Removal System for Cassava/Potato/Sweet Potato Slurry Purification
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | ZY |
| Número de modelo: | CS850 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | 2000-999999USD |
| Detalles de empaquetado: | Caja de madera |
| Tiempo de entrega: | 30 días después del pago |
| Condiciones de pago: | LC, T/T |
| Capacidad de la fuente: | 30set por mes |
|
Información detallada |
|||
| Color: | Blanco plateado | Calificación: | ISO/CE |
|---|---|---|---|
| Garantía: | 1 año | Material: | acero inoxidable |
| Motor: | marca china y seimens | Ventaja: | Alto eficiente |
| Material de partida: | Yuca, patata, batata | Función: | Molino de molienda de alta eficiencia |
| Voltaje: | Según el voltaje local | inversor: | Delta Simens |
| Operación: | Fresadora totalmente automática | Industrias aplicables: | Fábrica de alimentos y bebidas |
| Resaltar: | stainless steel centrifuge sieve,cassava slurry purification system,potato starch impurity removal |
||
Descripción de producto
Stainless Steel Centrifuge Sieve Efficient Impurity Removal System for Cassava/Potato/Sweet Potato Slurry Purification
Product Description:
The preliminarily pulped cassava pulp is fed into the bottom of the centrifugal sieve basket through a specially designed anti-clogging pipeline, ensuring stable and continuous separation. Driven by centrifugal force generated from high-speed rotation of the sieve and assisted by gravity, the pulp is uniformly distributed across the precision screen surface and gradually moves toward the periphery of the basket. High-pressure water spray systems facilitate thorough rinsing, allowing starch particles smaller than the mesh aperture to pass through and be collected as starch milk. Larger impurities are effectively separated and discharged via a dedicated slag removal pump, which prevents blockages and supports uninterrupted, environmentally sustainable operation. The system is engineered for large-scale, continuous production, delivering operational stability, enhanced starch recovery, and reduced processing costs.
Performance Features:
- High-speed operation delivers unbeatable starch-fiber separation efficiency; precision-machined structure ensures rock-solid performance and maximizes industrial throughput.
- Heavy-duty wear-resistant build slashes long-term maintenance costs and unplanned downtime, supercharging cost-effectiveness for continuous production lines.
- Tailor-made for large-scale industrial manufacturing and high-volume 24/7 processing, seamlessly meeting the tough demands of non-stop starch production.
Type of machinery :
| Model | Diameter of basket | Working model | Power kw | Weight T |
| CS850 | 850mm | Continue | 15kw-30kw | 1.3 |
| CS1000 | 1000mm | Continue | 22kw -37kw | 1.5 |
| CS1200 | 1200mm | Continue | 30kw -45kw | 1.8 |
- Ultra-High-Speed System: High-speed rotational mechanism enables rapid and efficient separation of starch and fiber with consistent compliance
- Precision-Tuned Structure: Engineered design ensures stable and continuous operation under heavy-duty conditions
- Heavy-Duty Wear-Resistant Construction: Robust materials reduce maintenance requirements and enhance operational cost-efficiency
- Industrial-Grade Versatility: Adjustable configurations support around-the-clock, high-throughput production across diverse processing demands
Inside photo for centrifugal sieves :
